Low-Profile scrap conveyors     MagSlide   Magnetic LawnChair conveyors     Medium Frame conveyors

New PowerTrac Conveyors

Low Profile

These sturdy, dependable aluminum-frame conveyors measure just 1 3/4 inches (44.45 mm) high.


Versatile Hybrid Conveyors combine the low-clearance benefits of a Low-Profile PowerTrac Conveyor at the take-up end with the power and traction of a Medium-Profile PowerTrac at the drive end.

Medium Profile

Their trim 3 7/8" (98.43 mm) frames can fit where space is limited. But they have the strength and versatility to tackle heavier parts and workflow

Magnetic Low-Profile


Magnetic options let you tailor PowerTrac Conveyors for optimum handling of ferrous parts and scrap.

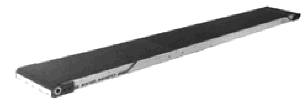

Low-Profile Conveyor Heavy-Duty Low-Profile Conveyor

lowprofl.gif - 2821 Bytes




hevprofl.gif - 1861 Bytes


Low-Profile Conveyors are ruggedly built to withstand the punishing duty of punch press and automated machine feed applications. But wherever they are used, these durable, compact units can increase material handling efficiency as they cut labor costs and downtime. When you need a conveyor designed to handle the toughest under-press jobs day after day with minimum maintenance, here is the right choice. Our Heavy-Duty Low-Profile Conveyors, HLPCs are designed for use in high-capacity, high-speed applications.
MagSlide Low-Profile Conveyors capture and move light ferrous parts and scrap in tight spaces. They incorporate key design features used in our Medium-Duty Conveyors but have space-saving 3 1/8" high frames that need less than 4 inches of vertical clearance. Medium-Duty Conveyors are ideally suited for removing small parts, chips, and turnings from machining centers throughout your plant. They come in a variety of standard lengths and widths and work equally well for machining, milling, stamping, slitting, and forming operations.
Medium Frame Conveyor Magnetic LawnChair Conveyor
medframe.gif - 2111 Bytes lawnchar.gif - 3954 Bytes
Handle Part and Scrap Removal In High-Speed, Heavy-Load, and Other Demanding Applications

Bunting Medium-Frame Conveyors - MFCs - lift where space is limited. Their frames are just 2 3/4'' wider than their conveyor belts and only 3 1/2'' high. With their robust construction and rugged components, our MFCs can handle a broad range of jobs.

Eliminate Manual Handling of Tote Pans From Under Machinery

Bunting Magnetic Lawnchair Conveyors - MLCs - have been specially designed to automate scrap and part removal under machinery. Your operators no longer have to struggle with heavy, hard-to-handle, totes. Our MLCs also eliminate the common problem of part and scrap overflow on the production line.
