Bachhuber Mfg. builds custom parts unloaders for stamping presses

Model 75

Bachhuber's smallest unloader designed for high speed short stroke punch presses.






Press Stroke Compensation from 1-1/4" to 6"
Tray Travel up to 10"
Infinitely Adjustable Tray Angle from 0 to 20
One Tray Included, Widths up to 10"
Mounting Brackets Included
Up to 100 SPM on Automatic Operation
Weight: Approx. 30#




Model 100

Light weight design excellent for quick change over and easy hookup and removal.


Press stroke compensation from 3" to 18"
Tray Travel up to 22"
Angle adjustment from 0 to 20
Includes 4" & 10" Trays and Mounting Brackets
Tray Widths up to 18"
Up to 60 SPM on Automatic Operation
Weight: Approx. 40#

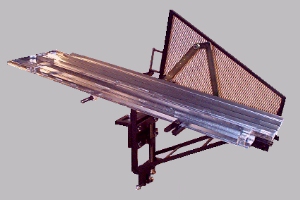

Model 200

Designed with two linear rails to unload wider & heavier parts and provide greater stability


Press Stroke Compensation from 3" to 20"
Tray Travel up to 24"
Adjustable Tray Angle from 0 to 20
One Tray Included, Widths up to 30"
Mounting Brackets Included
Up to 60 SPM on Automatic Operation
Weight: Approx. 180#

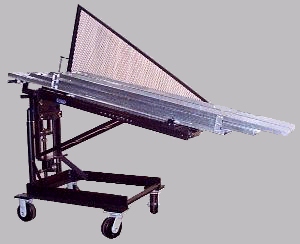

Model 316



Designed with a longer mainframe and linear rails, this unloader travels the farthest for Stocked unloaders.




Press Stroke Compensation from 7" to 30"
Tray Travel up to 34"
Adjustable Tray Angle from 0 to 20
One Tray Included, Widths up to 30"
Adjustment for Bolster Mounting Height From 32" up to 46"
Mounting Brackets Included
Up to 50 SPM on Automatic Operation
Weight: Approx. 400#
